Simpson Strong Tie Titen HD Heavy-Duty Screw Anchor
Availability: In stock
Only %1 left
SKU
sst-titen-hd
As low as $112.99
Expected Shipping: 1-3 Days About Expected Shipping Times
Have a question? Ask a Deck Building Expert
This product is guaranteed! No restocking fees.
On any combination of select items over $199.00
Excluding Alaska and Hawaii. Conditions Apply
- Minimum Order Tier: $199.00
- Note: Free shipping only applies to combined product totals of the same Minimum Order Tier.
Overview
Titen HD Heavy-Duty Anchors
Simpson Titen HD Heavy-Duty Screw Anchors are for use in cracked & uncracked concrete, as well as uncracked masonry. The Titen HD Anchors offer low installation torque & outstanding performance. IBC & IRC approved, Titen HD Screws feature an unique thread design that undercuts to efficiently transfer the load to the base material. The hex washer head allows faster installation with a socket instead of a torx bit. Available in 1/2" or 5/8" diameters, 5" or 6" lengths.
Description
Titen HD Heavy Duty Screw Anchors are made from Carbon Steel & feature:
- 1/2"x5" Titen HD Anchors available in Zinc Plated Carbon Steel or Mechanically Galvanized Carbon Steel
- 1/2"x6", 5/8"x5", 5/8"x6" Titen HD Anchors available Mechanically Galvanized Carbon Steel
- 1/2" have 3/4" Hex Heads
- 5/8" have 15/16" Hex Heads
- Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713
- Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

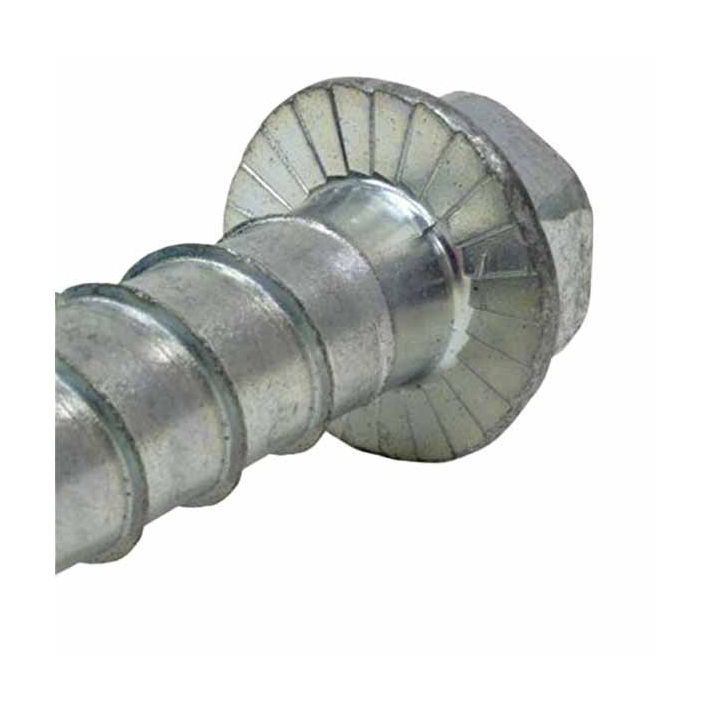

- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
- Reuse of the anchor to achieve listed load values is not recommended
Specifications
| Package Quantity | 10 or 20 per box depending on selection |
|---|---|
| Manufacturer | Simpson Strong Tie |
| Manufacturer Link | https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd_anchor/p/titen-hd |
| Installation Help | https://www.strongtie.com/resources/product-installers-guide/landing |
| Dimensions | 1/2" x 5", 1/2"x6", 5/8"x5", 5/8"x6" |
| CA Proposition 65 | https://www.thedeckstoreonline.com/proposition-65 |
