Overview

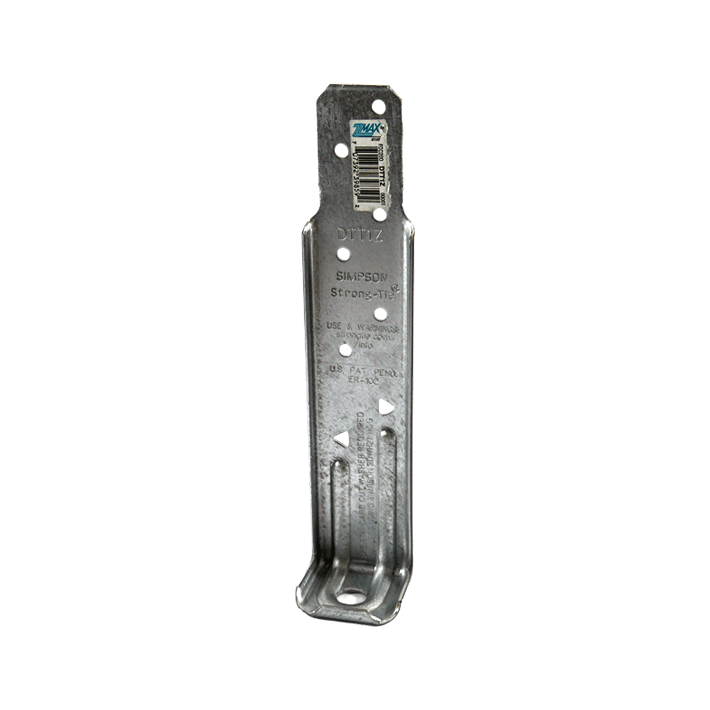

DTT1Z Deck Tension Tie
DTT1Z tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. The DTT1Z can be used as a tension-tie to satisfy the 2015 IRC provision for a 750 lbs. lateral load connection to the house at four locations per deck. The DTT1Z is has the ZMAX coating.
Description
For new construction or to make an existing current deck code-compliant, the DTT1Z can be used as a tension-tie to satisfy the 2015 IRC provision for a 750 lbs. lateral load connection to the house at four locations per deck. This new code detail permits the lateral connection from the deck joists to be made to top plates, studs, or headers within the supporting structure, which eliminates the need to access to the floor joists inside the home.
The new DTT1Z fastens to the narrow or wide face of a single 2x with Simpson Strong-Tie® Strong-Drive® SD Connector screws or nails and accepts a 3/8" machine bolt, anchor bolt, or lag screw (washer required) or can be installed with the new Strong-Drive SDWH Timber-Hex HDG screw with an integral washer.
Specifications
| Package Quantity | One DTT1Z Deck Tension Tie |
|---|---|
| Manufacturer | Simpson Strong Tie |
| Manufacturer Link | https://www.strongtie.com/decks_decksandfences/dtt_tie/p/dtt |
| Installation Help | https://www.strongtie.com/resources/product-installers-guide/landing |
| Dimensions | 1-1/2"x7-1/2" |
| CA Proposition 65 | https://www.thedeckstoreonline.com/proposition-65 |
